Completed in 2025, and in as-new condition.

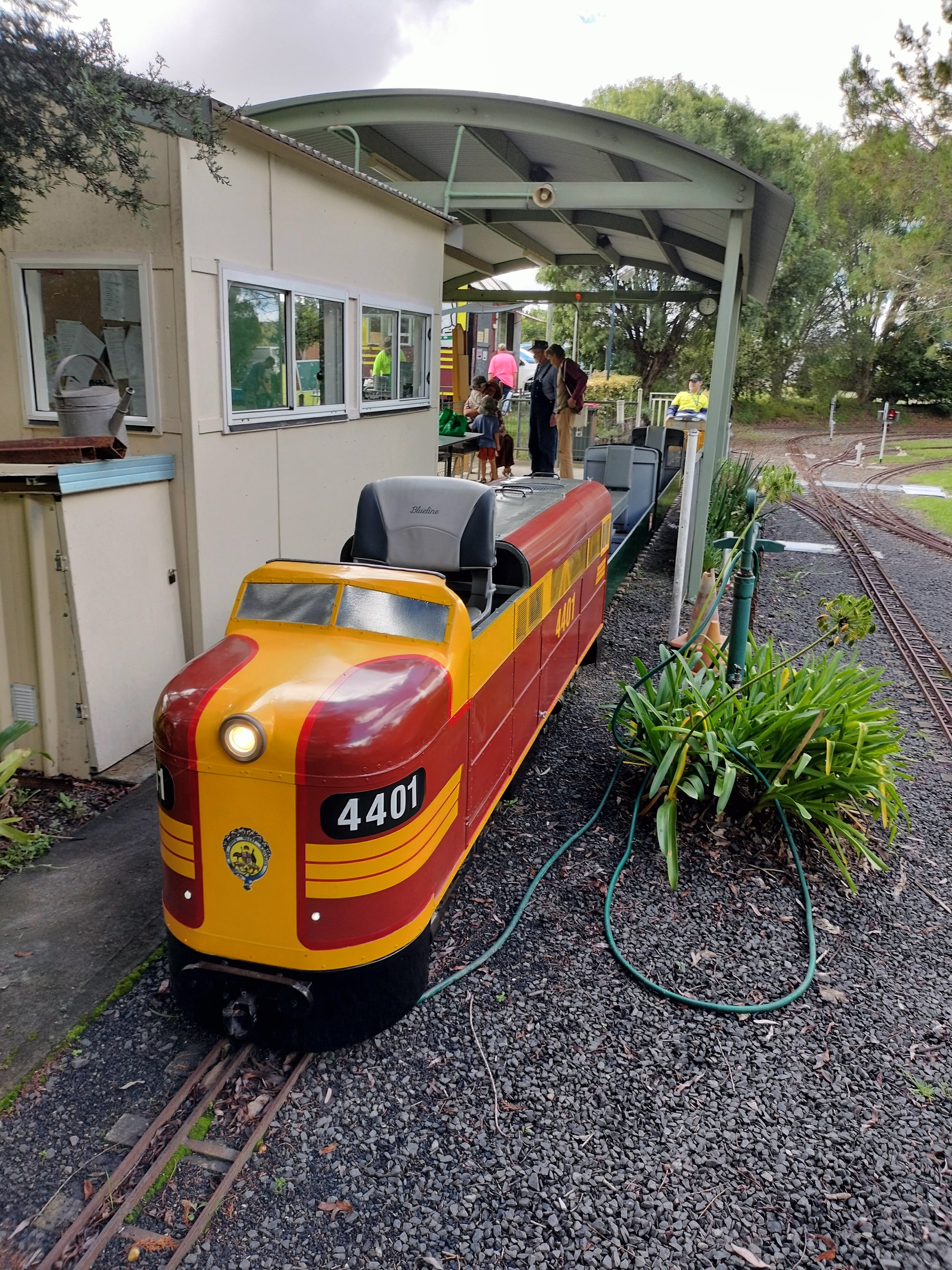

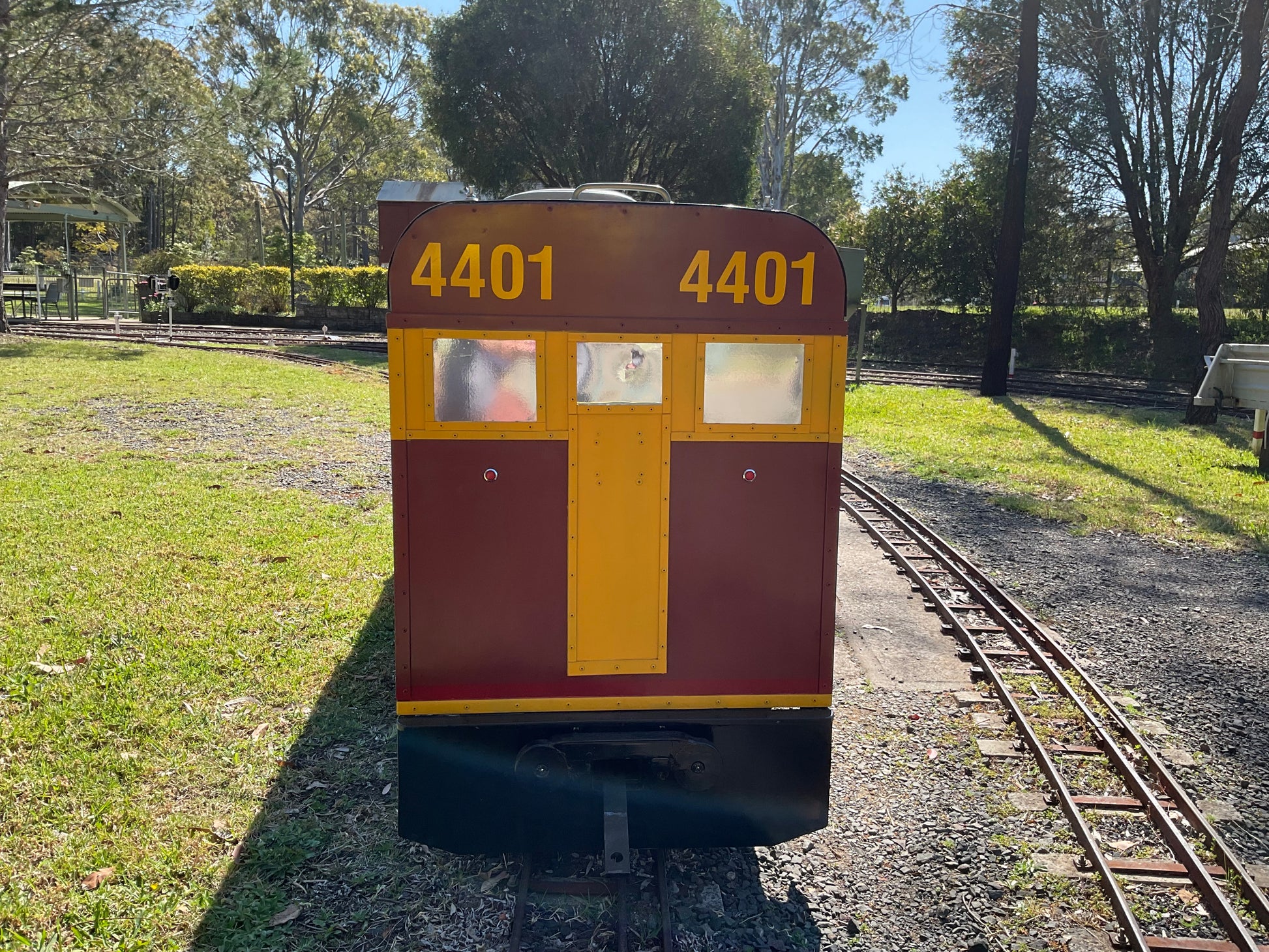

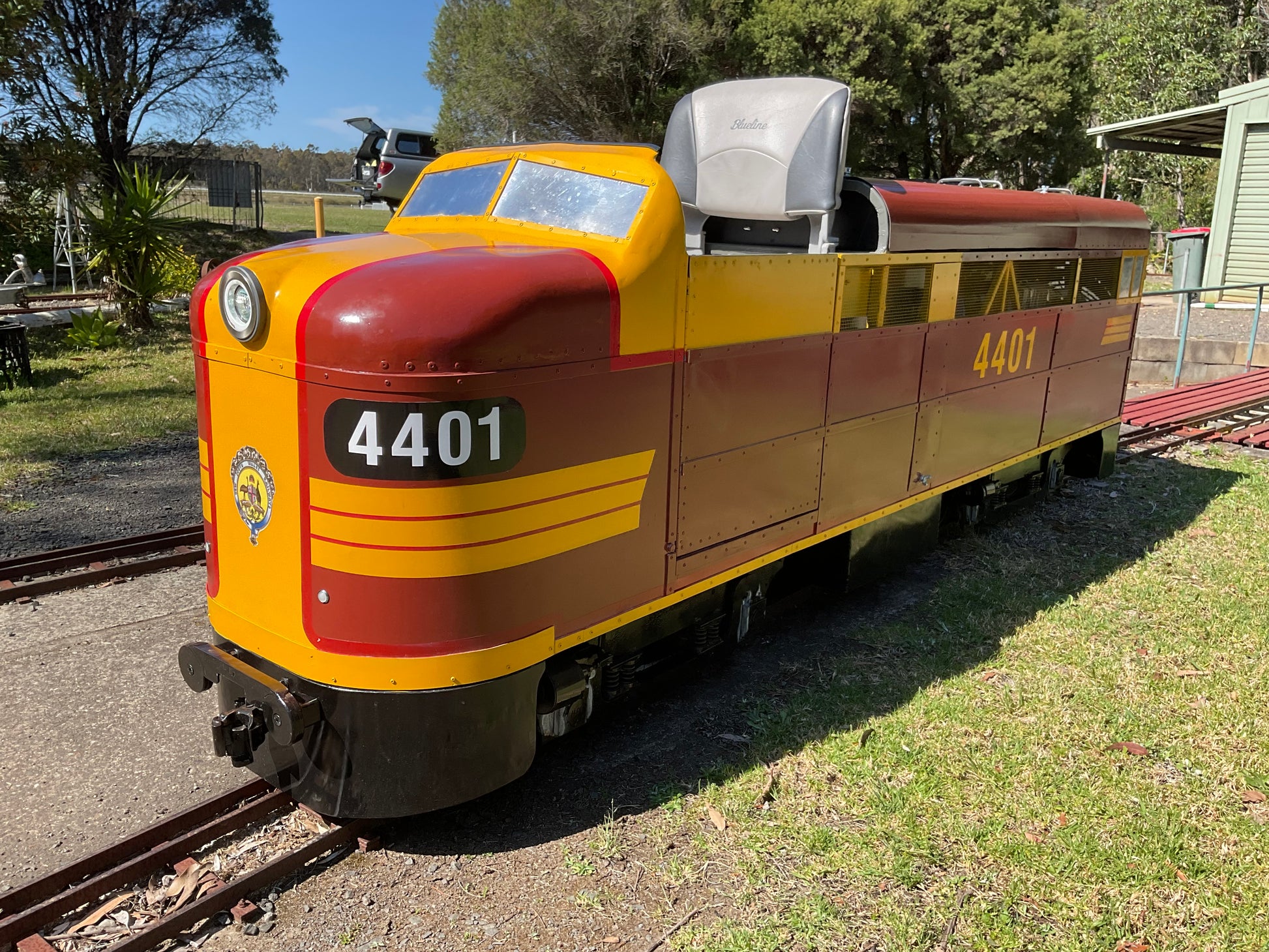

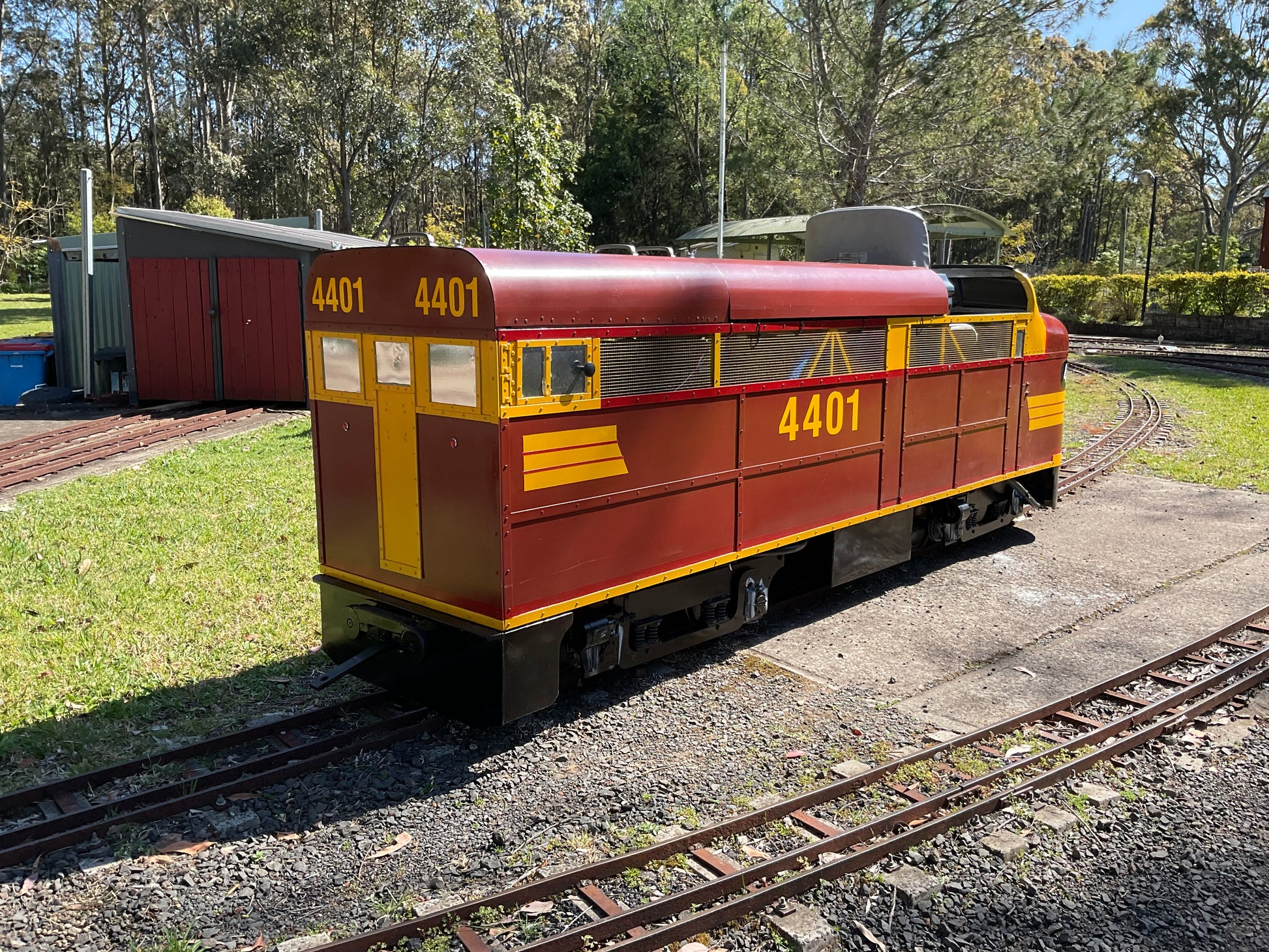

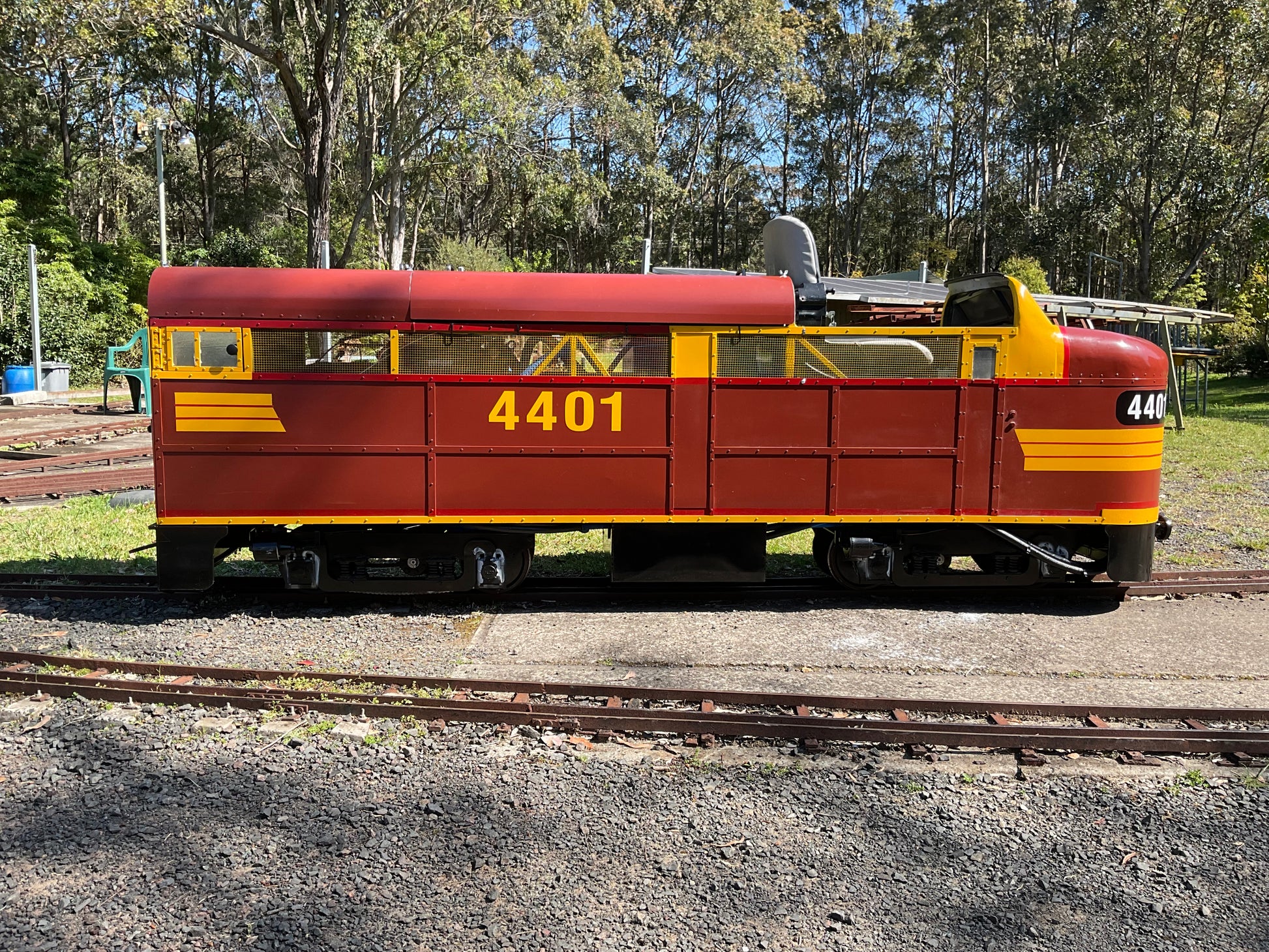

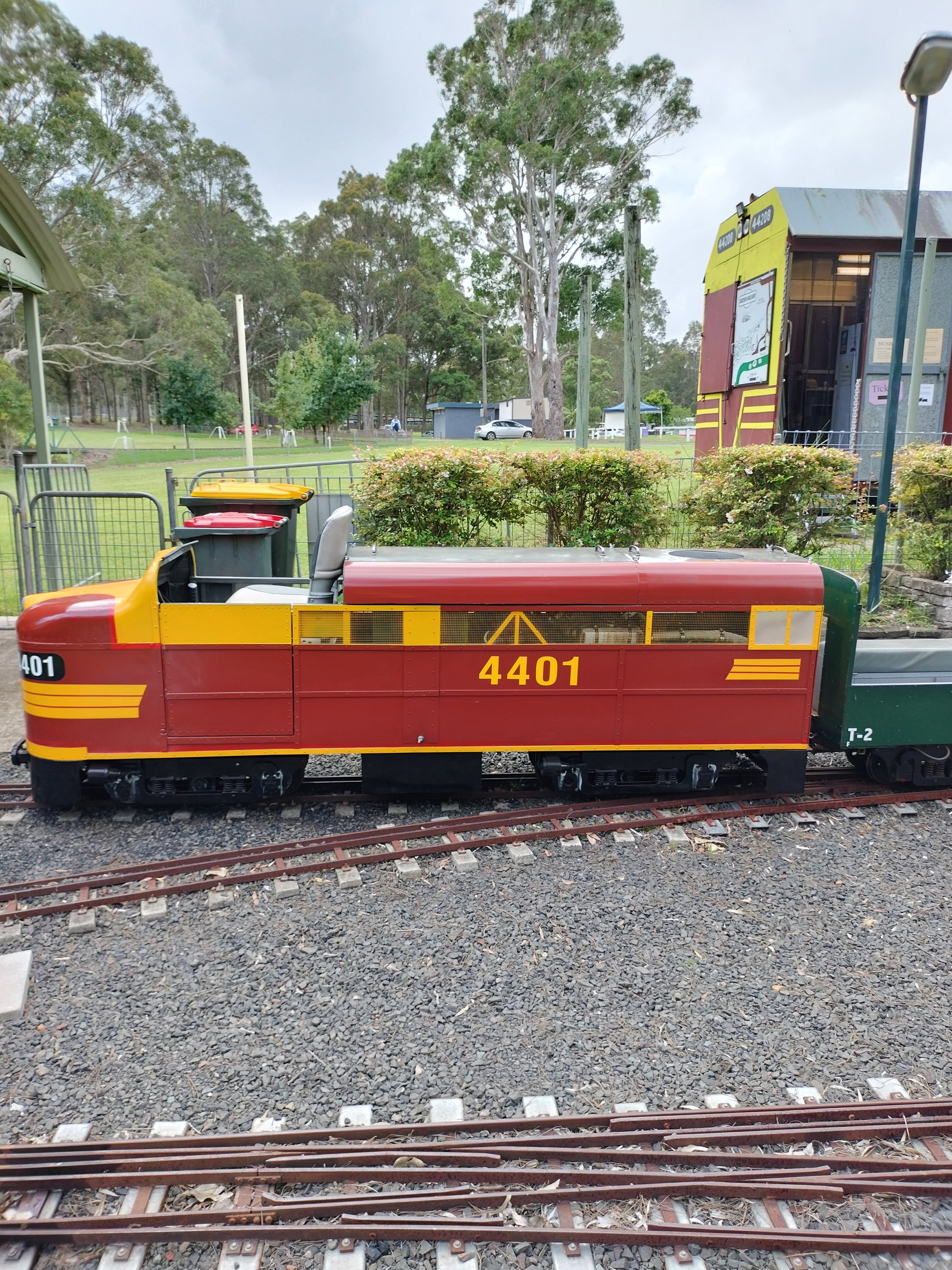

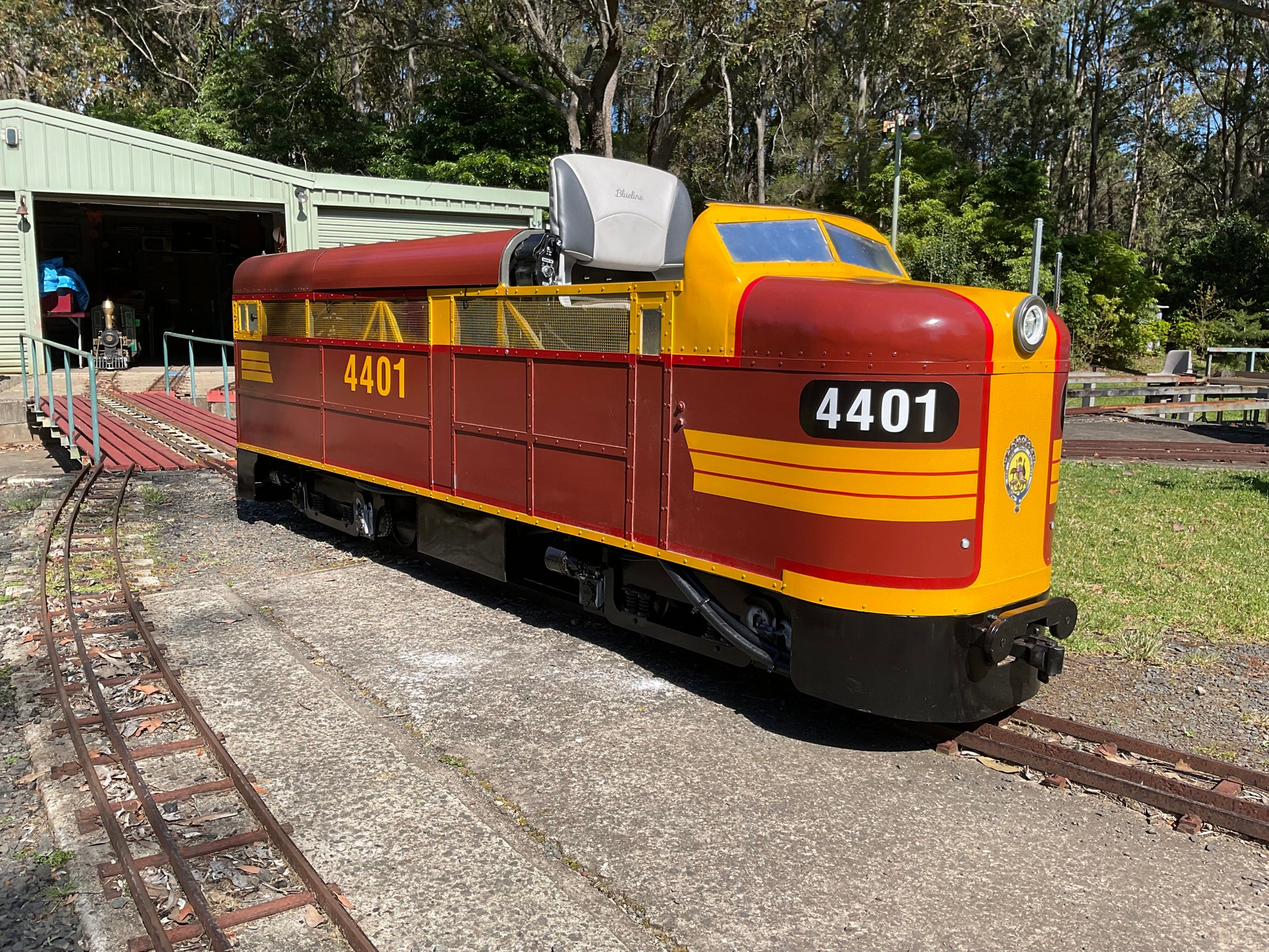

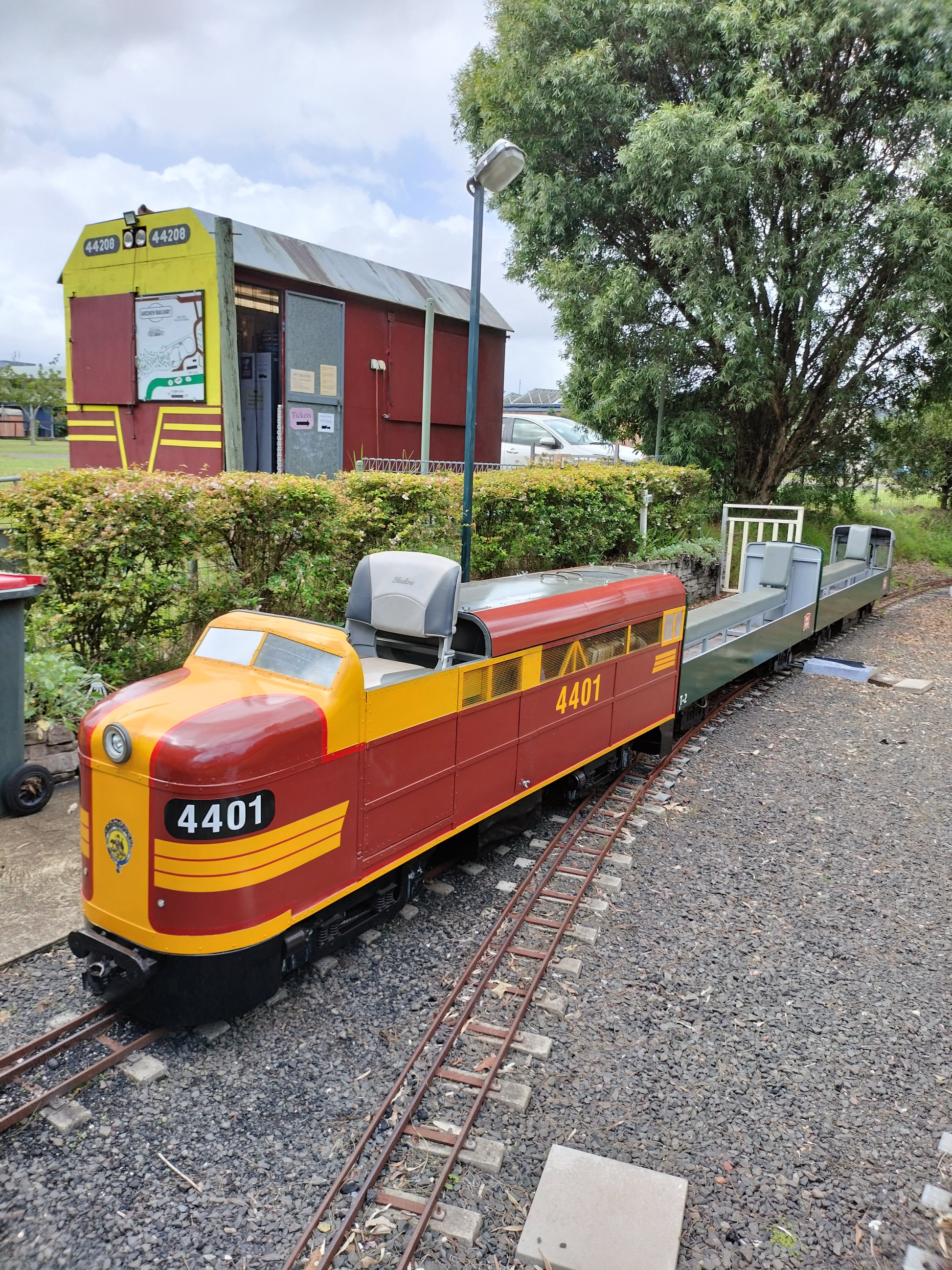

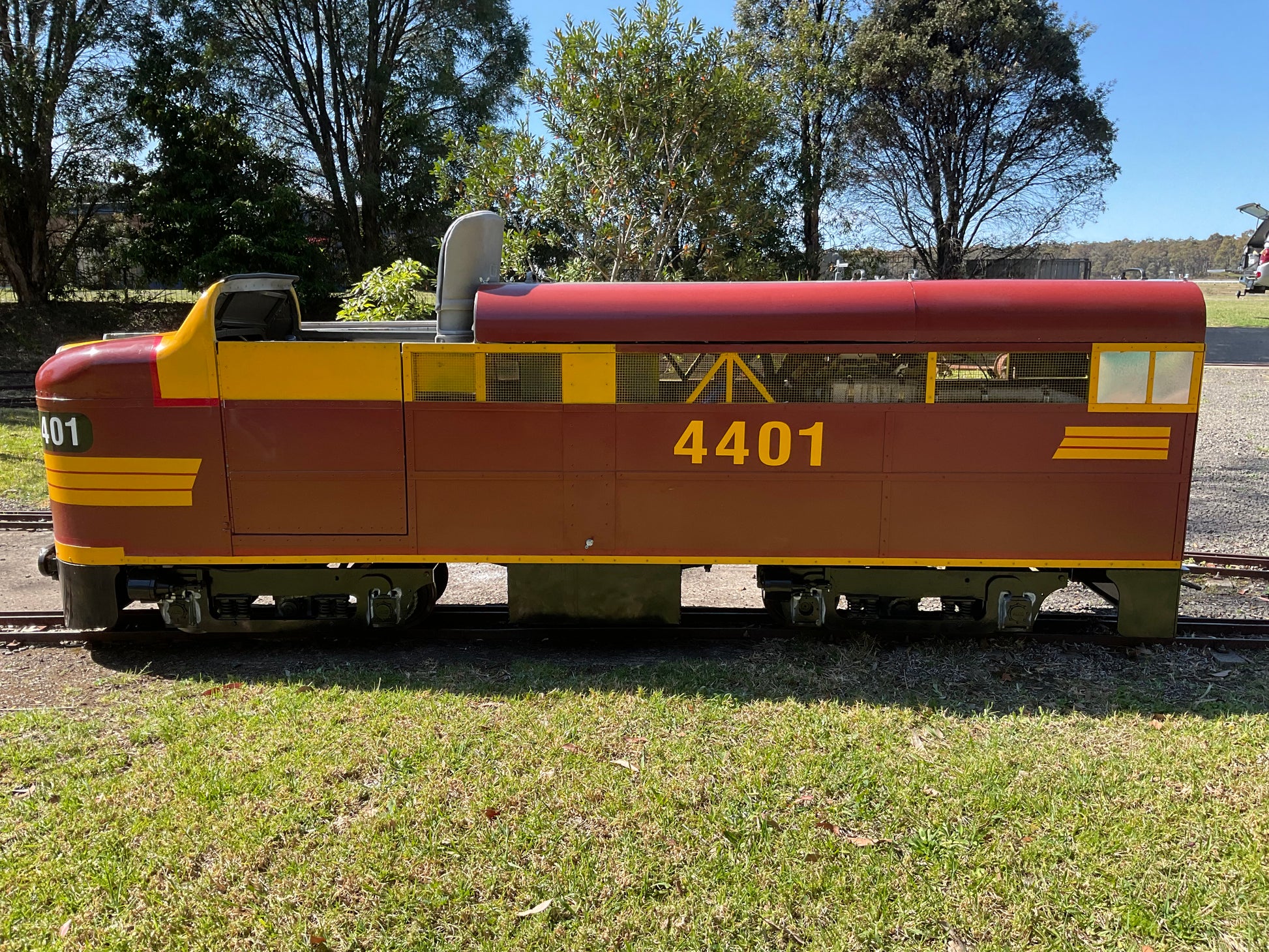

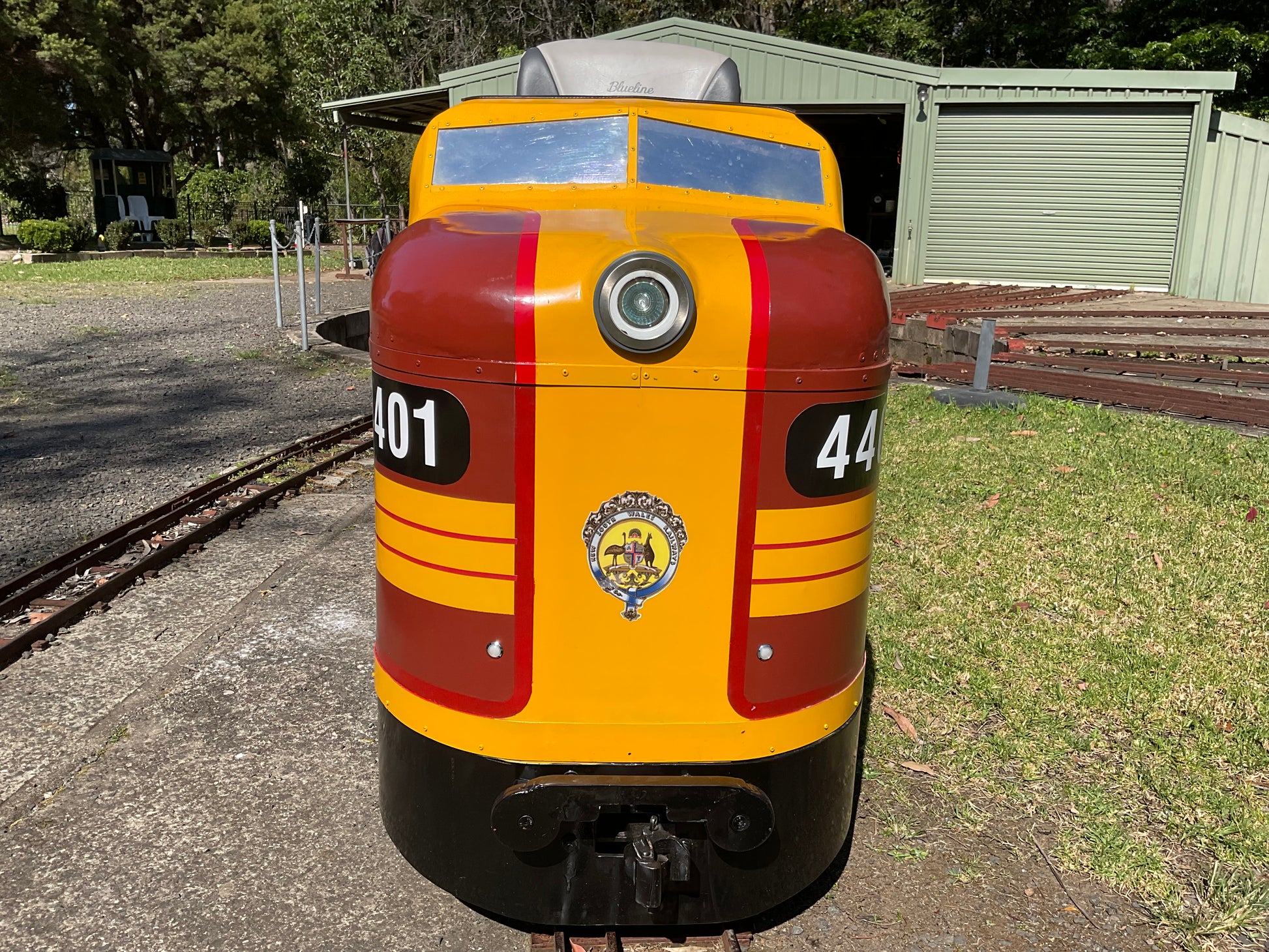

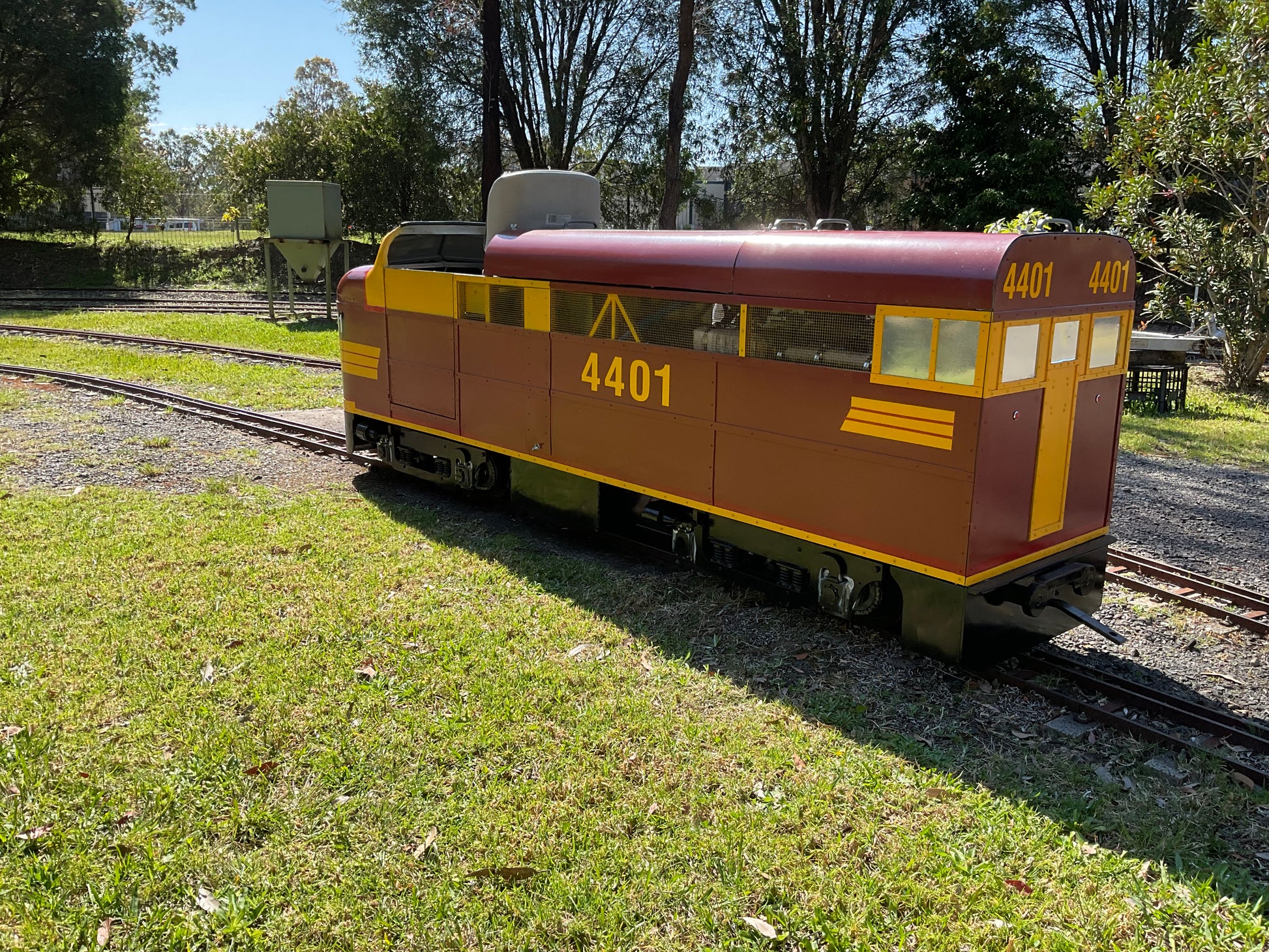

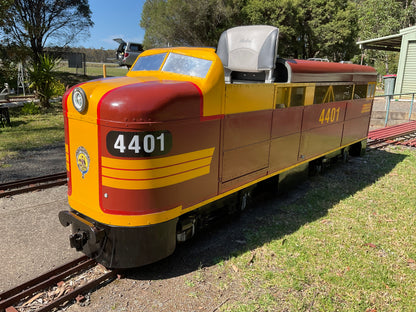

This loco is a good representation of the NSW 44 class, and has completed trials and passenger service with 100% reliability.
- 3000mm long
- 625mm wide
- 1000mm high
- 600kg
Engine: Vanguard 23hp Vee Twin, Electric Start, Petrol.
Hydraulic Pump: Vivoil 30cc gear type.
Monoblock MB3 Direction control valve, 45lpm open centre.
Orbital Hydraulic Motors 2 x BMP80 80cc/rev, both bogies powered.
Hydraulic tank 40 liters with temperature and level gauge.
Open circuit with motors connected in series.
All pressure hoses rated 4000psi minimum
Manual hydraulic parking brake, disc type.
Separate 50 amp alternator for battery charging
Davis Craig high-flow cooling fan.
LED headlight and front/rear marker lights
Note: No compressor or airbake system, Retrofit if required by new owner.
